Underground detectable warning tape

Art No.: AWT04

Thickness: 100mic~300mic (0.1mm-0.3mm)

Width: 5CM, 7.5CM, 10CM, 15CM, 30CM etc.

Length: 100,200,300,500M or customized

MOQ: 500-1000 ROLLS

SKU a0727d29fecd Categories Detectable warning tape, ROAD SAFETY PRODUCTS Tags Detectable warning tape, Underground detectable warning tape

GET INSTANT QUOTE

FEATURES

Product Details

Description
SEND INQUIRY

Description

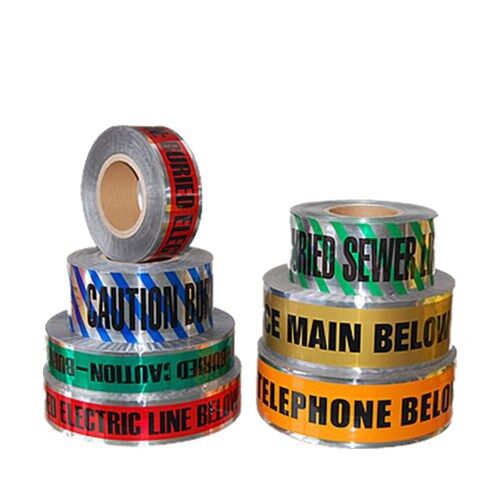

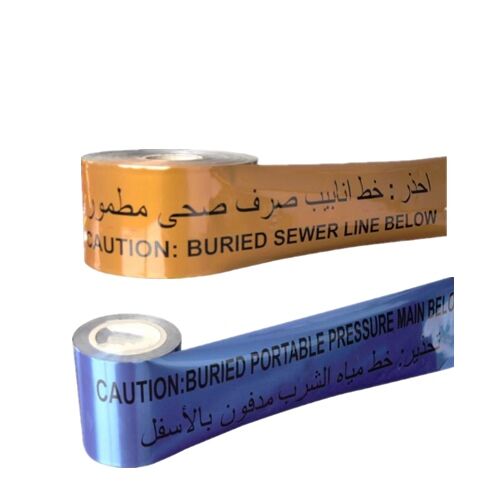

Underground detectable warning tape

Mainly used to mark on the underground pipe, such as water pipe, gas pipe, telephone cable liner, fiber cable etc. It will be helpful to prevent damage when digging.

Resist to moisture, humidity, corrosion and temperature variations

High strength and durable and detectable

Bright color

Made from thin sheets of bi-oriented polypropylene (PE/ AL FOIL/ OPP)

Prevent the dangers of digging into buried water and sewer pipes which causes service interruptions.

Superior tensile strength and puncture resistance making.

Protect pipes for years from accidental digging.

Customer’s printing such as company name, logo, phone no. etc.are available

Underground detectable warning tape specification:

Art No.	AWT04
Material	OPP/AL/PE
Thickness	100mic~300mic (0.1mm-0.3mm)
Width	5CM, 7.5CM, 10CM, 15CM, 30CM etc.
Length	100,200,300,500M or customized
Color	Blue, Red, Green,etc.
Logo	One color usual. At most 4 colors customer logo including name, tel,etc.

Custom Containers FAQs

Qigao is a welder and flame cutting machines leader in China. We insists on supplying professional technology, high performance and good after-sale service to meet the requirements of customers from around the worlds. China Qigao will try our best to become your one-stop supplier. Name your detailed task and we will find a solution together!

What industry are these gas cutting machine applied for?

These oxy-fuel flame gas cutting machine are well used in shipbuilding, oil production, metallurgy, metal structure and other manufacturers etc.

How to select the wanted cutting tips?

Different sizes of the cutting tips, different cutting thickness. First confirm the needed cutting thickness, then select the corresponding cutting nozzles. See below detailed parameter of G02 （acetylene）and G03 （propane）tips.

Type	No.	Gas cutting aperture(mm)	Cutting Thickness(mm)	Cutting speed (mm/min)	Oxygen pressure(Mpa)	Acetylene pressure(Mpa)
Acetylene GO₂	#00	0.8	5-10	600-450	0.2-0.3	>0.03
	#0	1.0	10-20	480-380	0.2-0.3	0.03
	#1	1.2	20-30	400-320	0.25-0.35	0.03
	#2	1.4	30-50	350-280	0.25-0.35	0.03
	#3	1.6	50-70	300-240	0.3-0.4	0.04
	#4	1.8	70-90	260-200	0.3-0.4	0.04
	#5	2	90-120	210-170	0.4-0.6	0.04
	#6	2.4	120-160	180-140	0.5-0.8	0.05
	#7	2.8	160-200	150-110	0.6-0.9	0.05
	#8	3.2	200-280	90-60	0.6-1.0	0.05
	#9	3.6	270-350	90-60	0.7-1.1	0.05
	#10	4	350-400	70-50	0.7-1.2	0.06

Type	No.	Gas cutting aperture(mm)	Cutting thickness(mm)	Cutting speed (mm/min)	Oxygen pressure(Mpa)	Acetylene pressure(Mpa)
Propane GO3	#0	0.7	5-10	800-450	0.2-0.3	>0.03
	#1	0.9	10-20	480-300	0.2-0.3	0.03
	#2	1.2	20-35	400-320	0.3-0.4	0.03
	#3	1.5	35-60	350-280	0.3-0.4	0.03
	#4	1.8	60-90	300-240	0.4-0.6	0.04
	#5	2.1	90-130	260-200	0.4-0.6	0.04
	#6	2.5	130-180	220-180	0.4-0.6	0.04
	#7	2.7	180-250	200-160	0.5-0.7	0.05
	#8	3.1	250-330	180-140	0.5-0.7	0.05
	#9	3.5	330-380	130-90	0.6-0.8	2.05
	#10	4.0	380-450	90-50	0.6-0.8	0.05

Can these gas cutting machines do circling-cutting and plasma cutting?

Yes, they can. Our standard machines are with the circling-parts to do extra circling cutting, including their main straight-line cutting function. What’s more, the plasma cutting also is available.

What is the differences between CG1-30A and CG1-30B?

The main differences between CG1-30A and CG1-30B is the working rail. 30A is with “H” rail, 30B is with hole rail. You can select the wanted rail before confirm the order. The rail is different, the price will be different.

How many welding machines do you have?

MIG welders, TIG welders, MMA welders, hand spot welding machines, welding carriage and portable spot welding machines, stud welding machines and so on.

What is the warranty time for welding and cutting machines?

What is the warranty time for welding and cutting machines.
