New auto darkening welding mask

Art No. : WMA04

Color: Back

View area: 98*44CM

Variable shade: DIN9-13

MOQ: 60PCS

SKU 210676580e68 Categories Auto-welding helmet, FACE PROTECTION, Welding helmet Tag New auto darkening welding mask

GET INSTANT QUOTE

FEATURES

Product Details

Description
SEND INQUIRY

Description

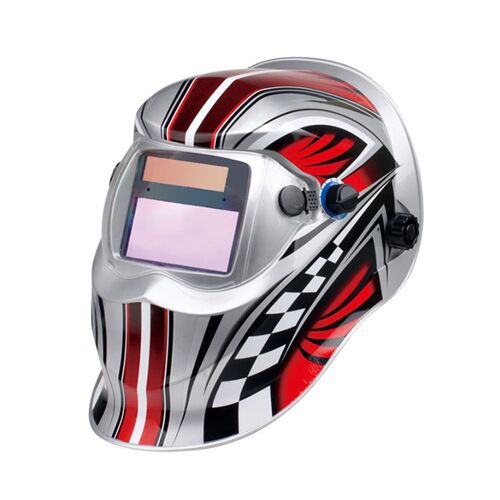

New auto darkening welding mask

Welding mask are designed to protect the eyes and face from sparks, spatter, and harmful radiation under normal welding conditions. Auto-darkening Filter automatically changes from a clear state to a dark state when an arc is struck, and it returns to the clear state when welding stops. This LCD Automatic Welding Helmet with high quality is made from rugged and durable materials that ensure longevity and durability day in and day out. With the massive viewing area, it can allow you to see your weld from all perspectives, also this helmet can use while cutting, shade range DIN9-13, In addition, the helmet is used as a protective shield by not darkening while grinding.

New auto darkening welding mask specification:

Art No.	WMA04
Variable shade	Din9-13
Darkness adjustment	External
Viewing area	98*44CM
Switching time of safety helmets shield	a) Light to dark: 1/25,000s. b) Dark to light: 0.1~1s.
Sensitivity	Low and high, steplessly adjustable
Light state	Shade DIN 4
UV/IR protection	Up to shade DIN 16 at all time
Power on/off	Automatic
Power supply	Large solar cells, two lithium batteries
Mode	Weld/Grind
Warranty	2 Years
Material & Weigh	PP, 0.48kgs.
Fire resistance	Yes
Dimension	360mm240mm230mm
Operating Temperature	-10℃~＋55℃
Storage Temperature	-20℃~＋70℃.

Factory workshop :

Custom Containers FAQs

Qigao is a welder and flame cutting machines leader in China. We insists on supplying professional technology, high performance and good after-sale service to meet the requirements of customers from around the worlds. China Qigao will try our best to become your one-stop supplier. Name your detailed task and we will find a solution together!

What industry are these gas cutting machine applied for?

These oxy-fuel flame gas cutting machine are well used in shipbuilding, oil production, metallurgy, metal structure and other manufacturers etc.

How to select the wanted cutting tips?

Different sizes of the cutting tips, different cutting thickness. First confirm the needed cutting thickness, then select the corresponding cutting nozzles. See below detailed parameter of G02 （acetylene）and G03 （propane）tips.

Type	No.	Gas cutting aperture(mm)	Cutting Thickness(mm)	Cutting speed (mm/min)	Oxygen pressure(Mpa)	Acetylene pressure(Mpa)
Acetylene GO₂	#00	0.8	5-10	600-450	0.2-0.3	>0.03
	#0	1.0	10-20	480-380	0.2-0.3	0.03
	#1	1.2	20-30	400-320	0.25-0.35	0.03
	#2	1.4	30-50	350-280	0.25-0.35	0.03
	#3	1.6	50-70	300-240	0.3-0.4	0.04
	#4	1.8	70-90	260-200	0.3-0.4	0.04
	#5	2	90-120	210-170	0.4-0.6	0.04
	#6	2.4	120-160	180-140	0.5-0.8	0.05
	#7	2.8	160-200	150-110	0.6-0.9	0.05
	#8	3.2	200-280	90-60	0.6-1.0	0.05
	#9	3.6	270-350	90-60	0.7-1.1	0.05
	#10	4	350-400	70-50	0.7-1.2	0.06

Type	No.	Gas cutting aperture(mm)	Cutting thickness(mm)	Cutting speed (mm/min)	Oxygen pressure(Mpa)	Acetylene pressure(Mpa)
Propane GO3	#0	0.7	5-10	800-450	0.2-0.3	>0.03
	#1	0.9	10-20	480-300	0.2-0.3	0.03
	#2	1.2	20-35	400-320	0.3-0.4	0.03
	#3	1.5	35-60	350-280	0.3-0.4	0.03
	#4	1.8	60-90	300-240	0.4-0.6	0.04
	#5	2.1	90-130	260-200	0.4-0.6	0.04
	#6	2.5	130-180	220-180	0.4-0.6	0.04
	#7	2.7	180-250	200-160	0.5-0.7	0.05
	#8	3.1	250-330	180-140	0.5-0.7	0.05
	#9	3.5	330-380	130-90	0.6-0.8	2.05
	#10	4.0	380-450	90-50	0.6-0.8	0.05

Can these gas cutting machines do circling-cutting and plasma cutting?

Yes, they can. Our standard machines are with the circling-parts to do extra circling cutting, including their main straight-line cutting function. What’s more, the plasma cutting also is available.

What is the differences between CG1-30A and CG1-30B?

The main differences between CG1-30A and CG1-30B is the working rail. 30A is with “H” rail, 30B is with hole rail. You can select the wanted rail before confirm the order. The rail is different, the price will be different.

How many welding machines do you have?

MIG welders, TIG welders, MMA welders, hand spot welding machines, welding carriage and portable spot welding machines, stud welding machines and so on.

What is the warranty time for welding and cutting machines?

What is the warranty time for welding and cutting machines.
