Hand held welding mask

Art No.: WM04

Material: PP

Color: Black

Shade No.: #11 (#7-#14 for choice)

MOQ: 500PCS

SKU 7583ba68d38d Categories FACE PROTECTION, Normal welding helmet, Welding helmet Tags Hand held welding mask, Welder helmet

GET INSTANT QUOTE

FEATURES

Product Details

Description
SEND INQUIRY

Description

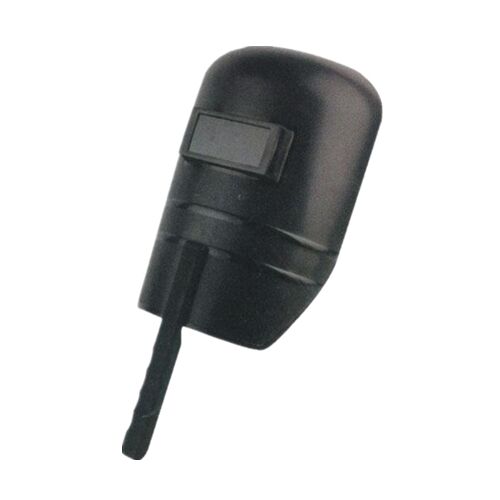

Hand held welding mask

Impact-resistant shell, PP material

View area size: 108mm x 50mm

Hand held to protect face and head from hurt by spark

Adapt for welding, cutting, gas cutting, etc.

Anti-UV and IR lens adopted, it can soundly protect user’s eyes.

Customer logo is available by adding a sticker

All inside surfaces of the welding helmet have a matt finish

Quick and easy lens replacement: Due to the patented design, filter lenses and cover lenses can be installed and removed easily and quickly.

Includes front and side impact resistance.

Light attenuation: The welding helmet shell can block harmful light during the welding process, and no unattenuated light is visible in any position of the welding helmet.

Hand held welding mask specifications:

Art No.	WM04
Material	PP
View area	Welding glasses size 108503mm
Shade No.	#11 black
Structure	Hand held
Packing	1PC/Poly-bag, 50PCS/CTN
Carton size	482470CM
N/G.W	12.5/13.5KGS

Custom Containers FAQs

Qigao is a welder and flame cutting machines leader in China. We insists on supplying professional technology, high performance and good after-sale service to meet the requirements of customers from around the worlds. China Qigao will try our best to become your one-stop supplier. Name your detailed task and we will find a solution together!

What industry are these gas cutting machine applied for?

These oxy-fuel flame gas cutting machine are well used in shipbuilding, oil production, metallurgy, metal structure and other manufacturers etc.

How to select the wanted cutting tips?

Different sizes of the cutting tips, different cutting thickness. First confirm the needed cutting thickness, then select the corresponding cutting nozzles. See below detailed parameter of G02 （acetylene）and G03 （propane）tips.

Type	No.	Gas cutting aperture(mm)	Cutting Thickness(mm)	Cutting speed (mm/min)	Oxygen pressure(Mpa)	Acetylene pressure(Mpa)
Acetylene GO₂	#00	0.8	5-10	600-450	0.2-0.3	>0.03
	#0	1.0	10-20	480-380	0.2-0.3	0.03
	#1	1.2	20-30	400-320	0.25-0.35	0.03
	#2	1.4	30-50	350-280	0.25-0.35	0.03
	#3	1.6	50-70	300-240	0.3-0.4	0.04
	#4	1.8	70-90	260-200	0.3-0.4	0.04
	#5	2	90-120	210-170	0.4-0.6	0.04
	#6	2.4	120-160	180-140	0.5-0.8	0.05
	#7	2.8	160-200	150-110	0.6-0.9	0.05
	#8	3.2	200-280	90-60	0.6-1.0	0.05
	#9	3.6	270-350	90-60	0.7-1.1	0.05
	#10	4	350-400	70-50	0.7-1.2	0.06

Type	No.	Gas cutting aperture(mm)	Cutting thickness(mm)	Cutting speed (mm/min)	Oxygen pressure(Mpa)	Acetylene pressure(Mpa)
Propane GO3	#0	0.7	5-10	800-450	0.2-0.3	>0.03
	#1	0.9	10-20	480-300	0.2-0.3	0.03
	#2	1.2	20-35	400-320	0.3-0.4	0.03
	#3	1.5	35-60	350-280	0.3-0.4	0.03
	#4	1.8	60-90	300-240	0.4-0.6	0.04
	#5	2.1	90-130	260-200	0.4-0.6	0.04
	#6	2.5	130-180	220-180	0.4-0.6	0.04
	#7	2.7	180-250	200-160	0.5-0.7	0.05
	#8	3.1	250-330	180-140	0.5-0.7	0.05
	#9	3.5	330-380	130-90	0.6-0.8	2.05
	#10	4.0	380-450	90-50	0.6-0.8	0.05

Can these gas cutting machines do circling-cutting and plasma cutting?

Yes, they can. Our standard machines are with the circling-parts to do extra circling cutting, including their main straight-line cutting function. What’s more, the plasma cutting also is available.

What is the differences between CG1-30A and CG1-30B?

The main differences between CG1-30A and CG1-30B is the working rail. 30A is with “H” rail, 30B is with hole rail. You can select the wanted rail before confirm the order. The rail is different, the price will be different.

How many welding machines do you have?

MIG welders, TIG welders, MMA welders, hand spot welding machines, welding carriage and portable spot welding machines, stud welding machines and so on.

What is the warranty time for welding and cutting machines?

What is the warranty time for welding and cutting machines.
