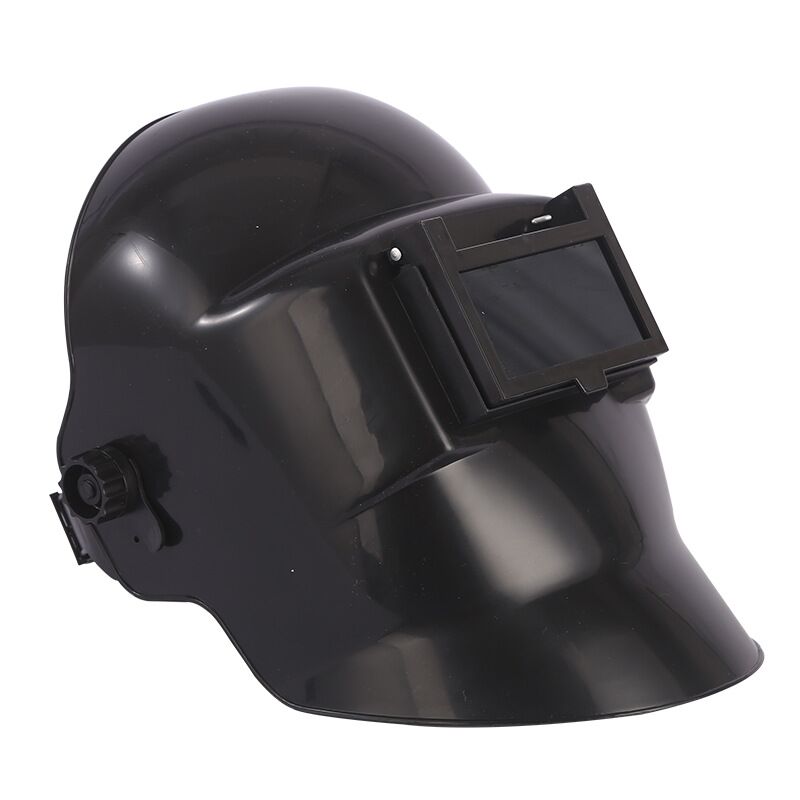

German style welding mask

Art No.: WM02

Material: 100% new PP

Color: Black

Shade No.: #11 (#7-#14 for choice)

MOQ: 500PCS

SKU edefed8cf759 Categories FACE PROTECTION, Welding helmet Tag German style welding mask

GET INSTANT QUOTE

FEATURES

Product Details

Description
SEND INQUIRY

Description

German style welding mask

Description:

Material:Toughness and moisture proof polypropylene(PP),

Thicker and more durable shell, most popular type custom welding mask

View area:108x50mm , harness size:53-63cm

Adjust whirl ratchet back for comfortable wear

Sweatband for comfortable wear

Features:

Eye protection: double filter light, prevent the ultraviolet and infrared harmful radiation from the arc.

Facial protection: effective prevention the occurrence of spatter and harmful body while operation,reduce skin burns.

Respiratory protection: airflow orientation, effective reduction of harmful gas and dust caused by welding, etc., can cause injury to the body.

German style welding mask specifications:

Art No.	WM02
Material	100%new PP
View area	Welding glasses size 108503mm
Shade No.	#11 black
Structure	Whirl ratchet back for comfortable wear adjust
Design	Fill up design
Packing	1PC/Poly-bag, 25PCS/CTN
Carton size	524552CM
N/G.W	11/12KGS

Custom Containers FAQs

Qigao is a welder and flame cutting machines leader in China. We insists on supplying professional technology, high performance and good after-sale service to meet the requirements of customers from around the worlds. China Qigao will try our best to become your one-stop supplier. Name your detailed task and we will find a solution together!

What industry are these gas cutting machine applied for?

These oxy-fuel flame gas cutting machine are well used in shipbuilding, oil production, metallurgy, metal structure and other manufacturers etc.

How to select the wanted cutting tips?

Different sizes of the cutting tips, different cutting thickness. First confirm the needed cutting thickness, then select the corresponding cutting nozzles. See below detailed parameter of G02 （acetylene）and G03 （propane）tips.

Type	No.	Gas cutting aperture(mm)	Cutting Thickness(mm)	Cutting speed (mm/min)	Oxygen pressure(Mpa)	Acetylene pressure(Mpa)
Acetylene GO₂	#00	0.8	5-10	600-450	0.2-0.3	>0.03
	#0	1.0	10-20	480-380	0.2-0.3	0.03
	#1	1.2	20-30	400-320	0.25-0.35	0.03
	#2	1.4	30-50	350-280	0.25-0.35	0.03
	#3	1.6	50-70	300-240	0.3-0.4	0.04
	#4	1.8	70-90	260-200	0.3-0.4	0.04
	#5	2	90-120	210-170	0.4-0.6	0.04
	#6	2.4	120-160	180-140	0.5-0.8	0.05
	#7	2.8	160-200	150-110	0.6-0.9	0.05
	#8	3.2	200-280	90-60	0.6-1.0	0.05
	#9	3.6	270-350	90-60	0.7-1.1	0.05
	#10	4	350-400	70-50	0.7-1.2	0.06

Type	No.	Gas cutting aperture(mm)	Cutting thickness(mm)	Cutting speed (mm/min)	Oxygen pressure(Mpa)	Acetylene pressure(Mpa)
Propane GO3	#0	0.7	5-10	800-450	0.2-0.3	>0.03
	#1	0.9	10-20	480-300	0.2-0.3	0.03
	#2	1.2	20-35	400-320	0.3-0.4	0.03
	#3	1.5	35-60	350-280	0.3-0.4	0.03
	#4	1.8	60-90	300-240	0.4-0.6	0.04
	#5	2.1	90-130	260-200	0.4-0.6	0.04
	#6	2.5	130-180	220-180	0.4-0.6	0.04
	#7	2.7	180-250	200-160	0.5-0.7	0.05
	#8	3.1	250-330	180-140	0.5-0.7	0.05
	#9	3.5	330-380	130-90	0.6-0.8	2.05
	#10	4.0	380-450	90-50	0.6-0.8	0.05

Can these gas cutting machines do circling-cutting and plasma cutting?

Yes, they can. Our standard machines are with the circling-parts to do extra circling cutting, including their main straight-line cutting function. What’s more, the plasma cutting also is available.

What is the differences between CG1-30A and CG1-30B?

The main differences between CG1-30A and CG1-30B is the working rail. 30A is with “H” rail, 30B is with hole rail. You can select the wanted rail before confirm the order. The rail is different, the price will be different.

How many welding machines do you have?

MIG welders, TIG welders, MMA welders, hand spot welding machines, welding carriage and portable spot welding machines, stud welding machines and so on.

What is the warranty time for welding and cutting machines?

What is the warranty time for welding and cutting machines.
